China Custom Self Lubricating Plastic Conveyor UHMWPE Wear Strip

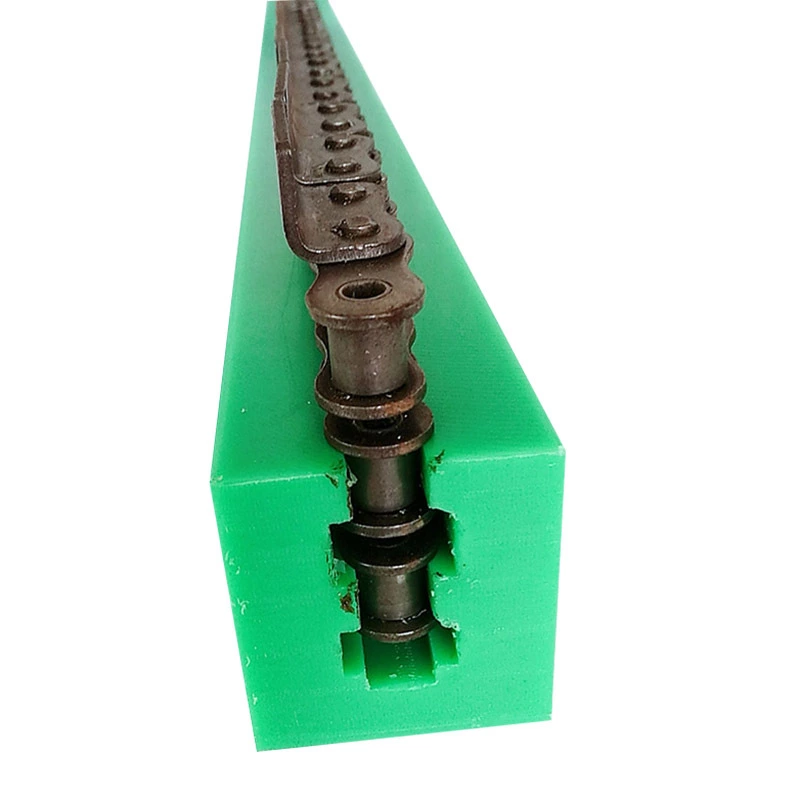

UHMWPE guide rails has all the advantages of UHMWPE, and its good condition made UHMWPE track in conveyor track, protective curve track, ect. And we have developed many types UHMWPE track , all available in several grades of UHMW plastic. UHMW chain guides
extend chain life, reduce noise and friction. You can order them in standard sizes, or have a custom order.
The canning, packing and bottling industries often utilize our conveyor components for their ease of use,

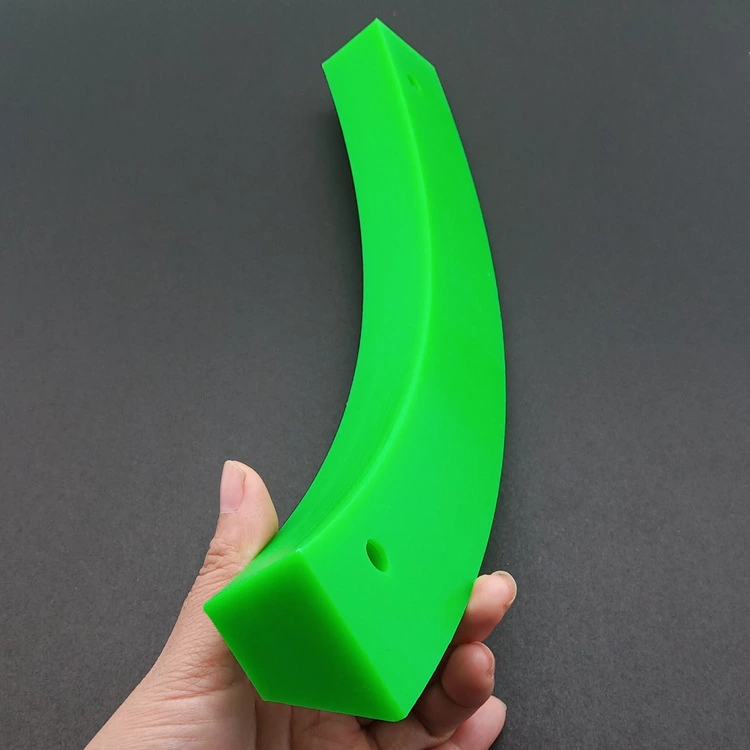

compatibility with other European suppliers, resistance to abrasion and low noise properties. Machined tracks offer a convenient and easy way to guide side flexing chain around a corner.
Made from Virgin UHMWPE they have a low coefficient of friction, silent operation and permit high speed lines.

Channel Style, Raised Track, Channel with a Raised Track, Mounting Channel

Chain guides are available in the channel style, raised track, and as a channel with a raised track. These chain guides are also
available as inserts for mounting channels. The channels are available as galvanized or stainless steel. A mounting channel is
welded or bolted into place and allows the UHMW to expand and contract without buckling.

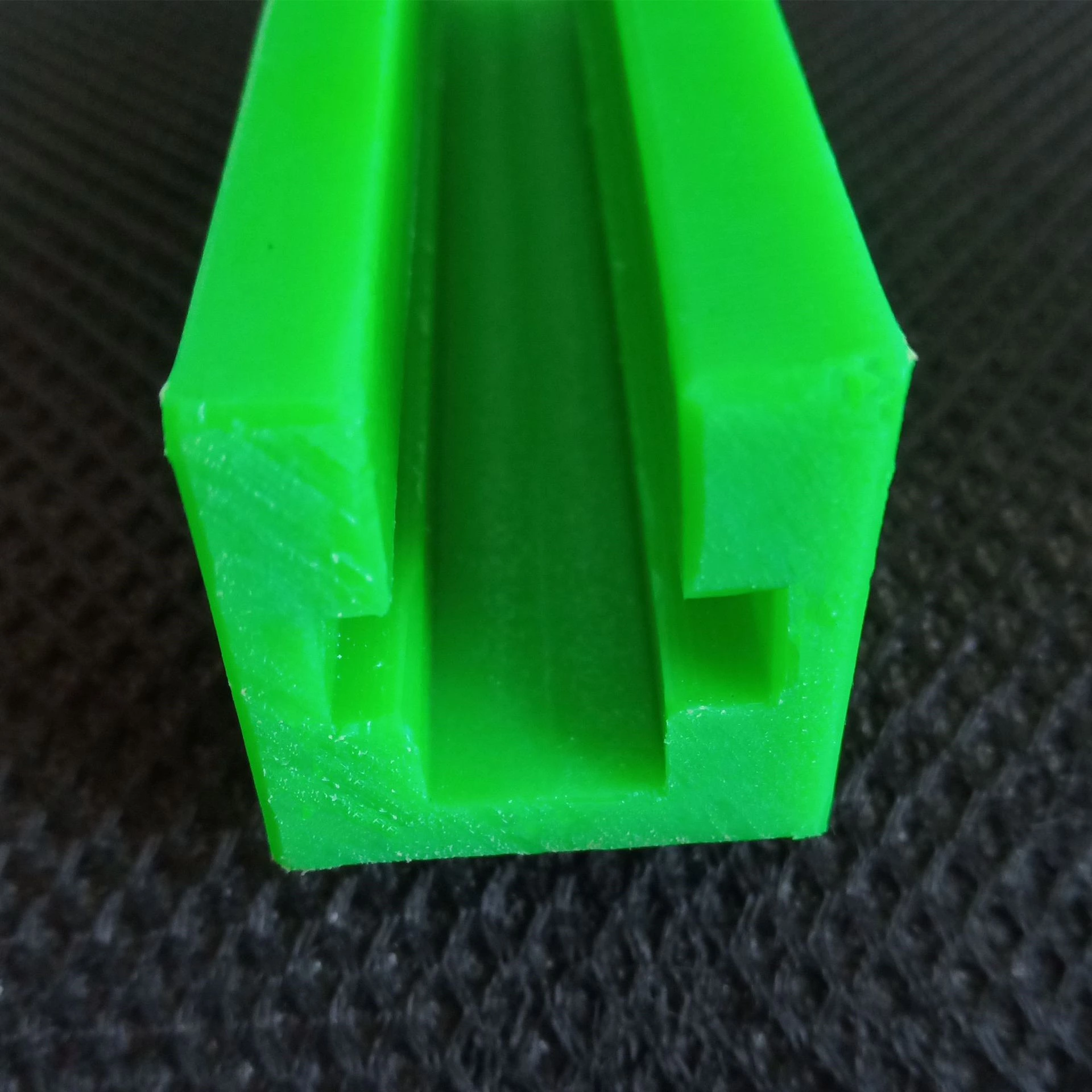

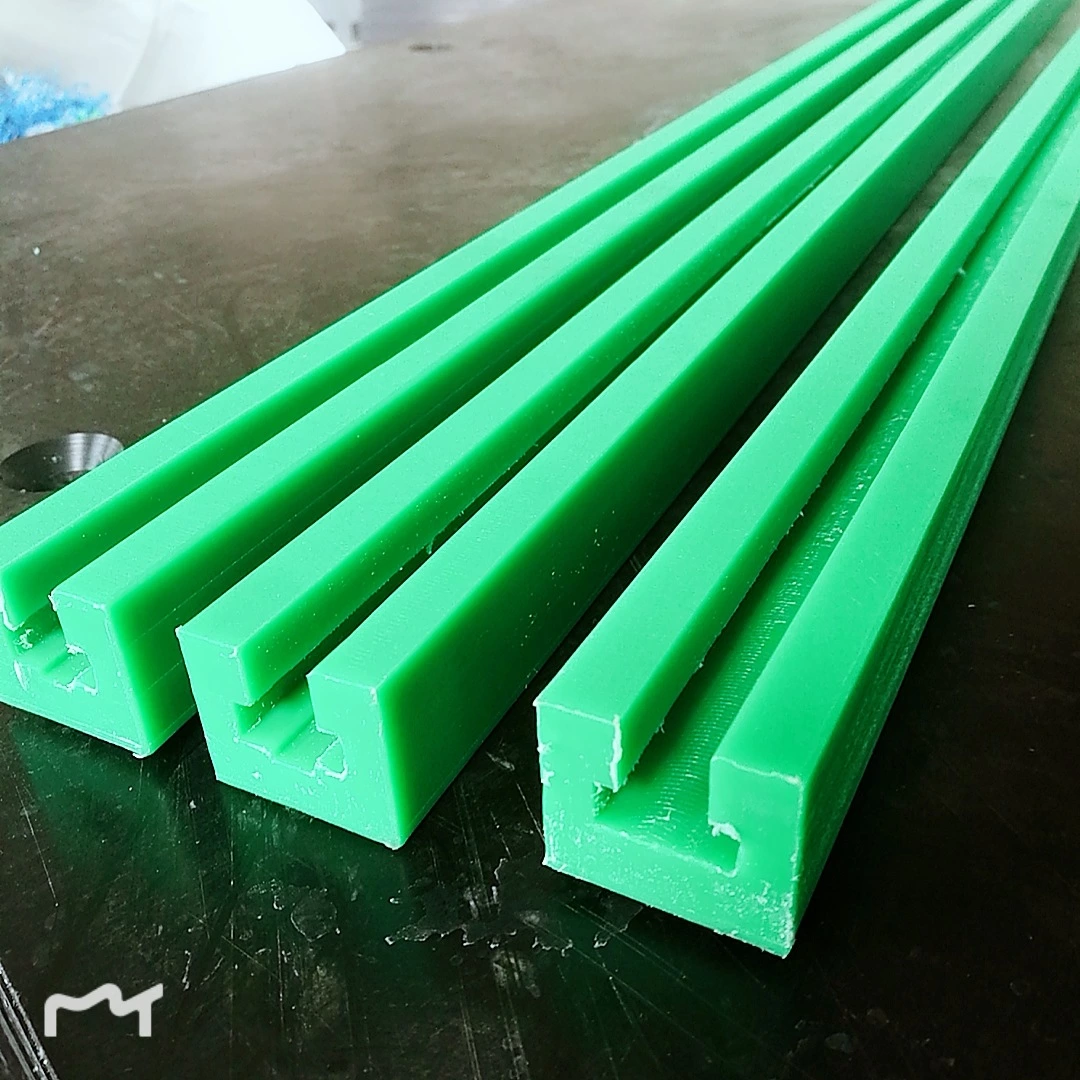

T Type Plastic Chain Linear Guides
UHMWPE (Ultra High Molecular Weight Polyethylene) is thermoplastic engineering plastics, which is normally used in the area of
marine, transport, coal-mining, machinery, paper-making, textile industry, etc.

The advantage of UHMW chain guide:
(1) abrasion highest plastic, seven times higher than carbon steel, four times higher than PTFE.
(2) Impact strength plastic in the first column, 2 times higher than that of polycarbonate, 5 times higher than ABS.
(3) self-lubricating performance equivalent to F4, add the oil than steel and brass after high lubricity.
(4) Corrosion resistance: at a certain temperature and humidity within the ability of various corrosive media, and the role of the
organic solvent medium, high chemical stability.
(5) nonstick surface of product compared with other materials is not easy to attach, strong anti-adhesion properties.
(6) of impact resistance, impact energy absorbing the highest in all plastics, nylon 66 10 times 8 times PTFE.
(7) low temperature resistance, in liquid nitrogen (-196 °C), still malleable, this low-temperature toughness is all plastics that
are not performance.
(8) completely non-toxic health: Is the U.S. Drug and Food and the U.S. Department of Agriculture (USDA) approved for use in
contact with food and drugs occasion of the material.
